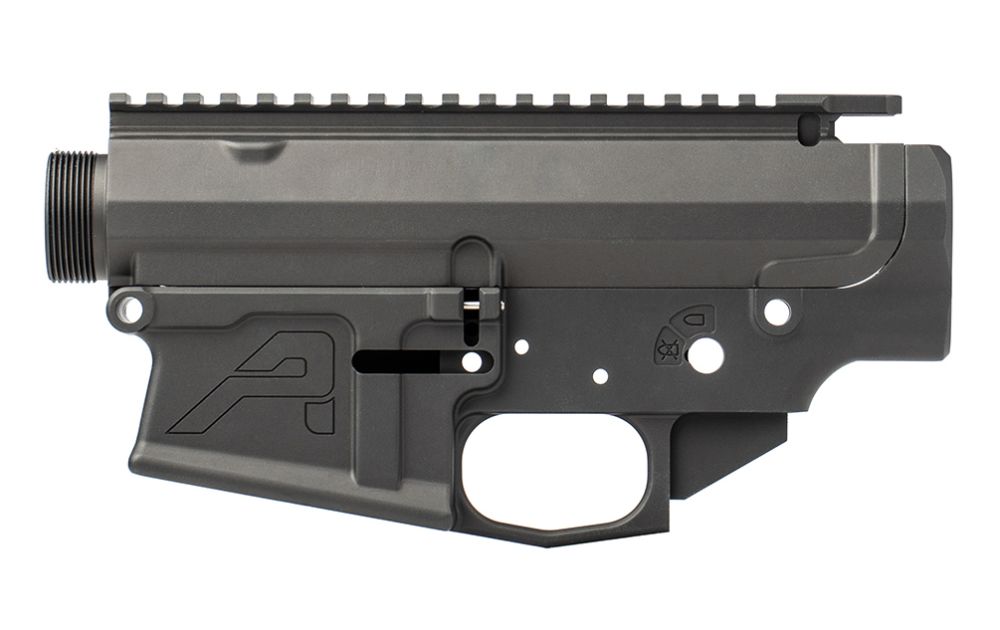

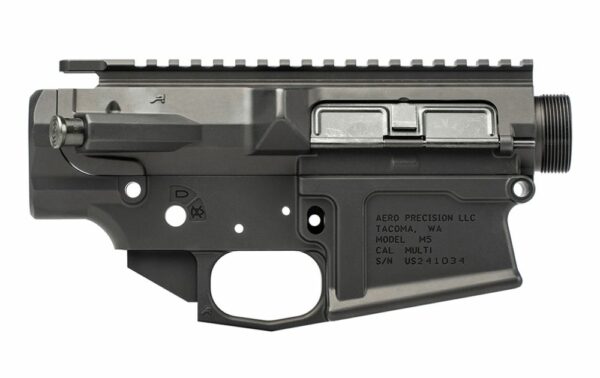

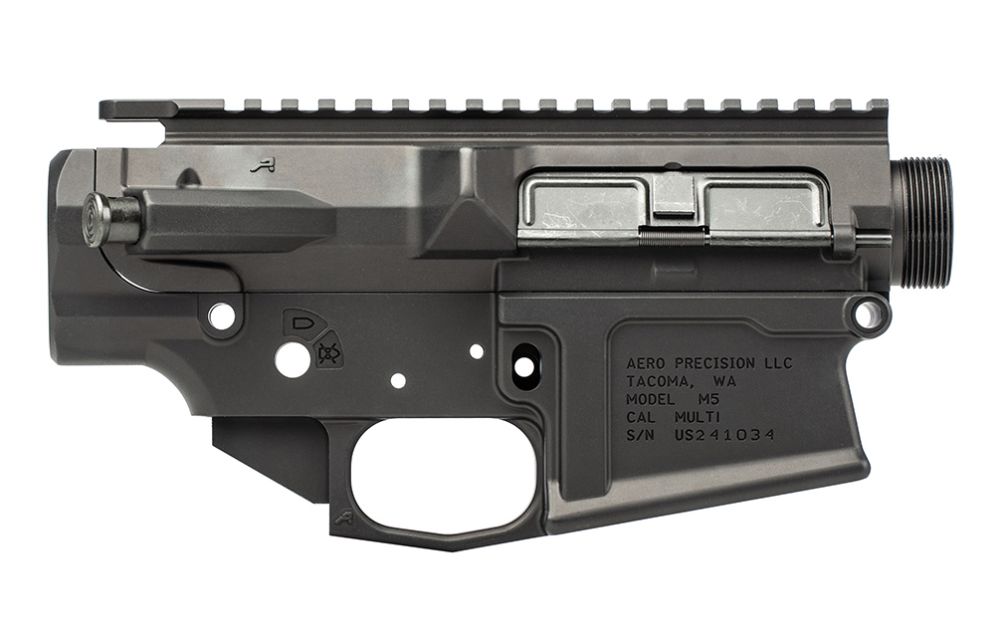

Upper Receiver Features:
- Platform: M5 (.308)
- Material: Machined from 7075-T6 forged aluminum
- Coating: Matte black hard-coat anodized Mil 8625 Type 3 Class 2
- M4 Feedramps
- .2795” takedown pin holes (DPMS size)
- AR 308 High Profile (.210) Tang
- Accepts standard DPMS .308 components
- Laser engraved T-marks
- Includes Port Door and Forward Assist
Lower Receiver Features:
- Platform: M5 (.308)
- Material: Machined from 7075-T6 forged aluminum
- Coating: Matte black hard-coat anodized Mil 8625 Type 3 Class 2
- Markings: “Cal Multi”
- Works with standard DPMS 308 components and magazines
- Rear takedown pin detent hole is threaded for a 4-40 set screw
- Bolt catch is threaded for a screw pin (no roll pin needed)
- Integrated trigger guard
- Selector markings will work with 45, 60 or 90 degree safety selectors
- Accepts Battle Arms Development short throw safety selectors, but will work with any standard selector
- No gap with aftermarket pistol grips
Technical Specifications:
- Platform: M5
- Color: Anodized Black
- Weight: 24.7 oz
Made in the USA
NOTE: All firearms must be shipped to an FFL dealer or local gun shop in your area. As the purchaser, it is your responsibility to arrange your transfer with your dealer and verify that your chosen dealer will transfer the firearm to you. Even though we include our FFL with your firearm purchase, IF your dealer insists they need our FFL before the transfer, it can be downloaded at Aegis Cerakote & Gunworks FFL.
